In HVAC, plumbing, and industrial fluid systems, maintaining accurate pressure conditions is essential for safe and efficient operation. A pressure test point provides technicians with convenient access to check pressure and, where applicable, temperature within pipelines.
It supports routine maintenance, commissioning, troubleshooting, and system balancing without requiring permanent gauges at every location. For businesses looking for dependable testing solutions, Rapid Controls provides pressure test point products designed for heating and cooling applications.
What Is a Pressure Test Point?
A pressure test point is a compact connection installed on a pipeline that allows technicians to connect suitable measuring instruments and check system pressure. Instead of installing permanent monitoring equipment at every measurement location, technicians can use a test point whenever a reading is required.
This makes test points particularly useful in HVAC and hydronic systems, where pressure measurements may be required at different stages of installation, commissioning, and maintenance.
How Pressure Test Points Improve Reliability
Easy System Monitoring
Accessible test points make it easier for technicians to monitor system conditions. During commissioning, pressure readings can be taken at different locations and compared to expected operating conditions. This can help confirm whether the system is functioning correctly.
Faster Troubleshooting
Unexpected pressure differences can indicate flow restrictions, system imbalance, pump-related issues, or other operating problems. Test points provide convenient measurement locations, allowing maintenance teams to investigate problems more quickly and take corrective action.
Reduced Equipment Costs
Permanent gauges can be expensive when multiple monitoring locations are required. Test points provide a practical alternative for systems where pressure needs to be checked periodically. A compatible testing instrument can be used across multiple test points, reducing the need for permanent gauges.
Support for Preventive Maintenance
Regular pressure checks can help identify changing system conditions before they become major problems. By incorporating test points into maintenance procedures, technicians can monitor system performance and detect unusual readings at an early stage.
Quality and Construction
A quality pressure test point should be selected based on the application's operating conditions. Important factors include construction material, sealing performance, pressure rating, temperature range, connection design, and compatibility with the system fluid.

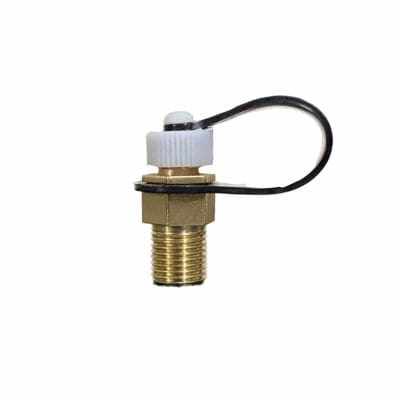

Rapid Controls specifies its pressure test point with a brass body, molded nylon components, and a neoprene sealing bush. The product is specified for applications involving working temperatures from -15°C to 150°C and working pressure up to 20 kg/cm², with a stated hydrostatic test pressure of 32 kg/cm².
Actual selection should always be based on the specific requirements of the installation and the manufacturer's technical specifications.
Applications of Pressure Test Points
Pressure test points are useful across several building-service and industrial applications, including:
HVAC systems: Checking pressure and temperature in heating and cooling circuits.
Hydronic systems: Supporting commissioning and system balancing.
Commercial buildings: Assisting routine inspection and maintenance.
Plumbing systems: Providing convenient pressure measurement locations.
Industrial systems: Supporting monitoring and troubleshooting where the product is suitable.
Their compact design and convenient access make them valuable wherever technicians need periodic measurements without installing permanent instruments at every point.
Industry Standards and Selection
When selecting a pressure test point, engineers should consider the system's pressure, temperature, fluid characteristics, connection requirements, and applicable standards. Measurement instruments should also be suitable for the expected pressure range and required accuracy.
Pressure and leak testing should follow the relevant piping, equipment, and industry requirements. Appropriate testing procedures and safety practices are essential when working with pressurized systems.
About Rapid Controls
Rapid Controls Private Limited is an Indian manufacturer of valves and control products with manufacturing experience dating back to 1973. The company serves HVAC-R, plumbing, fire protection, and industrial applications.
Its product range includes ball valves, control valves, actuators, flow switches, air-purge products, balancing solutions, and pressure test points. Rapid Controls focuses on quality, durability, suitability for application, and customer-oriented solutions. The company also supports OEM and customization requirements for selected applications.
Conclusion
Reliable pressure monitoring is an important part of maintaining efficient and safe fluid systems. A properly selected pressure test point provides convenient access for measurement, supports troubleshooting and preventive maintenance, and can reduce the requirement for multiple permanent gauges.
For HVAC, plumbing, hydronic, and compatible industrial applications, a quality pressure test point can contribute to better monitoring and improved system reliability. With its established manufacturing experience and range of valve and control solutions, Rapid Controls offers practical products for modern building-service and industrial requirements.
